By Liangyu Laser Technical Team | 12-min read

9 Practical Checks to Approve Hot Stamping Foil Samples Before Production

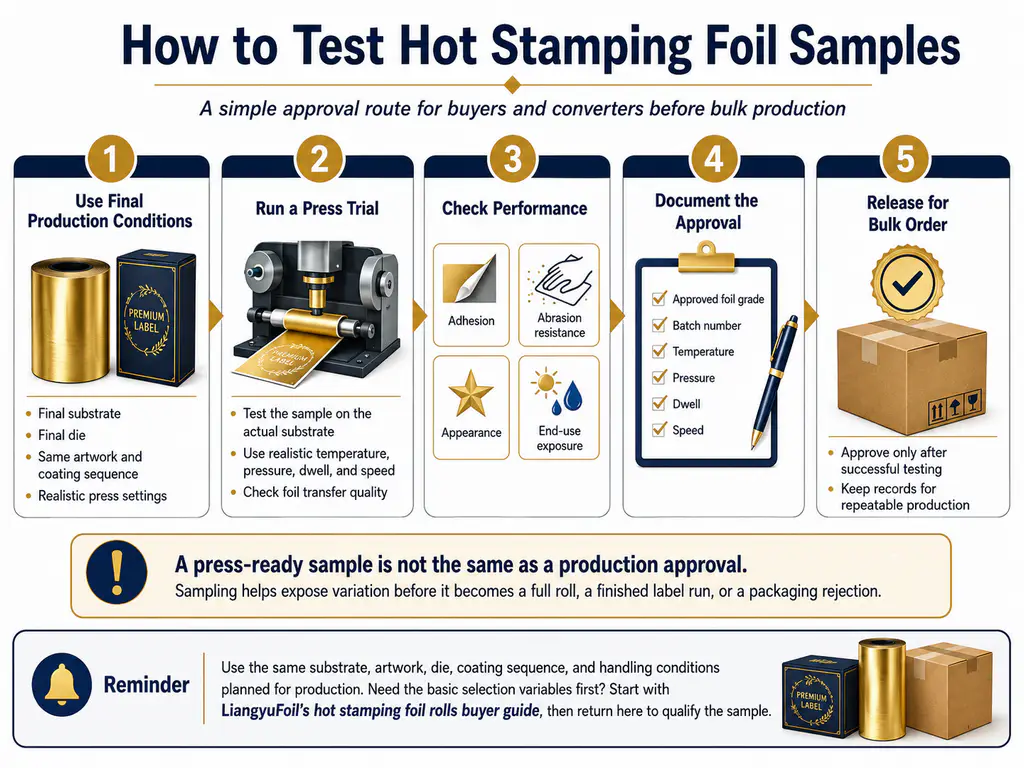

Quick Answer: How to Test Hot Stamping Foil Samples

Hot Stamping Foil Samples should be tested on the final substrate, with the final die and realistic press settings. Check transfer, adhesion, abrasion, appearance and end-use exposure, then document the approved foil grade, batch, temperature, pressure, dwell and speed before releasing a bulk order.

A press-ready sample is not the same as a production approval. The purpose of sampling is to expose variation before it becomes a full roll, a finished label run or a packaging rejection. Use the same substrate, artwork, die, coating sequence and handling conditions planned for production. This guide gives buyers and converters a repeatable approval route.

Need the basic selection variables first? Start with LiangyuFoil’s hot stamping foil rolls buyer guide, then return here to qualify the sample.

Confirm the Exact Substrate and Surface Condition

Test on the actual coated paper, PET, PP, PE, ABS, lacquer or laminate intended for the job. A foil can transfer well on a supplier’s reference sheet and fail on a different coating, additive package, paper texture or cure level. Record manufacturer, grade, thickness, colour, surface finish, lot number and any varnish or primer.

Substrate question	Why it matters	Record in the sample file
Is this the final commercial substrate?	Coatings and additives change foil adhesion.	Supplier, grade, lot and finish
Has the surface been treated?	Corona, plasma, primer and varnish can change wetting.	Treatment method and date
Is it clean and fully cured?	Silicone, slip agents, powder, oil and under-cure create a release layer.	Cleaning method and cure condition

Use at least five pieces from the intended substrate lot when practical, and include rough, coated and high-coverage areas if the job contains them. A dyne pen can be a quick screening tool for films, but do not treat one surface-energy reading as proof of a successful foil system. If the application is plastic packaging, compare the sample brief with this hot stamping foil for plastic guide.

Run a Controlled Transfer Window

Do not search for one universal temperature. Start with the foil supplier’s recommendation, then change one variable at a time: temperature, pressure, dwell and speed. The useful result is a documented operating window that delivers complete transfer without halo, excessive spread, distortion or substrate damage.

Trial step	Change	Observe
Baseline	Supplier starting setting	Coverage, edge sharpness, release
Temperature ladder	Small, controlled increments	Missing transfer, spread, substrate marks
Pressure/dwell check	One adjustment per trial	Fine detail and deformation
Production-speed check	Target press speed	Repeatability over the run

Log the die material and relief, machine type, head temperature, dwell or cycle, pressure setting, speed, roll width and foil batch. The settings that look good in a slow hand trial may not hold at normal production speed. For process fundamentals, see how to apply hot stamping foil.

Inspect Complete Transfer and Fine Detail

Inspect under consistent lighting before judging colour or gloss. Check solid blocks, microtext, thin positive lines, reversed gaps, corners and embossed areas. Photograph the same positions on every trial sheet. Mark defects with simple codes: IT for incomplete transfer, EL for edge lift, FD for lost fine detail and SP for spread.

Agree an acceptance sample before production. It should state which defects are unacceptable, where visual inspection occurs, the viewing distance and whether the job is assessed as a luxury pack, a retail label or an industrial component. Never approve a sample simply because it looks good from a distance.

Check Adhesion With an Agreed Method

Use a repeatable tape-pull or cross-hatch method appropriate for the substrate, then compare the result to the approved control. ASTM D3359 describes tape-test methods for assessing coating adhesion; it is a test method, not a universal pass grade for every foil application. Define tape, cut pattern, dwell time, peel angle and acceptance rule in advance.

For each test, record whether foil lifts from the centre, line edge, coated area or only after cross-hatching. Do not claim a generic peel-force threshold unless the buyer and supplier have agreed the instrument, geometry, substrate and end-use requirement. Where UV varnish is present, use the findings from this UV varnish adhesion guide to check cure, additives and surface contamination first.

Test Abrasion and End-Use Exposure

Match the test to the way the finished item will be handled. A cosmetic cap may need repeated hand contact; a wine label may see condensation and wiping; a carton may be abraded in case packing. Run a simple agreed rub test on-site, then use a laboratory method only when the job requires controlled comparative data.

Exposure	Practical sample check	Decision record
Handling and carton rub	Dry rub with agreed material and load	Scuff, dulling, foil loss
Cleaning or product contact	Spot and wipe test using actual liquid	Liquid, dwell, wipe material
Cold or moisture	Condensation / refrigerator cycle	Time, temperature, recovery
High-risk abrasion	Controlled lab comparison if required	Method, load, cycles, visual score

ASTM D4060 is a recognized abrasion-test standard for organic coatings using a Taber Abraser. It can support a controlled comparison, but the wheel, load, cycle count and pass/fail limit must be agreed for the specific job. For coated-paper failures, review why hot stamping foil may not stick to coated paper.

Verify Colour, Gloss and Visual Match

Metallic foil is directional and appearance changes with illumination, viewing angle and substrate. Compare every trial to an approved physical control under the same lighting. For high-value colour work, define instrument, geometry, illuminant and tolerance before sampling. The CIE colorimetric system provides the basis for standardized colour measurement.

Photographs are supporting evidence, not a substitute for a retained control. Record camera, lighting, angle and image ID. If Delta E or gloss readings are required, set the job-specific tolerance with the brand owner; a single universal value is not appropriate for mirror, brushed, holographic and pigment foils alike.

Repeat the Trial at Production Speed

A successful single impression proves only that one setting can work once. Run enough consecutive impressions at intended speed to reveal heat variation, die contamination, roll tracking and release inconsistency. Include start-up, mid-run and end-of-roll samples. If a defect changes over time, log where it appeared rather than averaging it away.

Use a Sampling Plan That Can Detect Variation

Agree sample quantity from the risk of the job, not from an arbitrary number. Higher-risk work includes fine artwork, textured stock, high-gloss foil, regulated packaging, multiple press shifts and aggressive end-use exposure. For each condition, retain labelled passed and failed examples. Where foil batches or substrate lots change, repeat the key checks.

Sample label field	Example
Test ID	HSF-2026-07-01
Foil and batch	Grade, colour, lot, roll width
Construction	Substrate, varnish, die, artwork revision
Press conditions	Temperature, pressure, dwell, speed
Result	Pass / revise / fail plus defect code

Release the Bulk Order Only After Written Approval

Attach the approved control, test sheet, photographs and process window to the purchase order or technical specification. State what must be matched in the bulk supply: foil grade, shade or effect, lot traceability, roll dimensions, core, winding direction, splice policy and packing. This is the bridge between a good sample and a repeatable order.

When requesting pricing or a new sample, provide the eleven details in LiangyuFoil’s quote requirements checklist. It reduces back-and-forth and gives the technical team enough context to recommend a suitable grade.

Observed failure	First checks	Do not do
Patchy transfer	Surface cleanliness, die contact, temperature window	Raise every setting at once
Edge lift after tape test	Cure, additives, primer and foil grade	Assume the foil alone is at fault
Fine detail fills in	Artwork, die relief, pressure and dwell	Use more pressure as the only fix
Scuffing or dullness	End-use test, foil grade and protective finish	Approve from an untouched press sheet
Colour mismatch	Control sample, lighting and substrate lot	Judge only from a phone image

FAQ

What starting settings should I use for hot stamping foil?

Start from the foil supplier’s recommended window, then run a controlled ladder on the final substrate. Record temperature, pressure, dwell and speed. There is no responsible universal setting for coated paper, PET and polypropylene because construction, coating, die and machine design differ.

How many samples should I approve before a bulk foil order?

Use a risk-based plan. Retain passed and failed examples from the intended substrate lot, and repeat key checks when the foil batch, substrate lot, coating sequence or press shift changes. Fine artwork and high-abrasion packaging require more evidence than a simple solid logo.

Can I use a tape test as the only adhesion test?

No. A tape test is a useful comparative screen when its procedure is agreed, but it does not replace transfer inspection, end-use exposure and a production-speed trial. Use an appropriate documented method and compare against an approved control.

What should appear on a hot stamping foil sample approval record?

Include foil grade and batch, substrate lot, coating or primer, die, artwork revision, machine, temperature, pressure, dwell, speed, test method, photos, result and approver. Keep a physical control with the record.

What if the sample passes but the bulk run fails?

Compare the production variables against the approval record first: substrate lot, foil batch, coating cure, die, machine settings, speed and environmental conditions. Then isolate one variable per repeat trial. A documented sample record makes this investigation much faster.

Send Your Sample Brief Before Ordering

Share your final substrate, application, machine and die details, target foil effect, production speed, and photos of any trial result. LiangyuFoil can help you create a practical sample-evaluation plan before you commit to a bulk order.
